Topdon Phoenix Scope

$895.00 USD $1,199.00 USD Save $304.00 USD

Quantity

Secure Payment

Free Shipping & No TAX

Lifetime Customer Support

Shipping & Returns

Authorization Files

4 Channel Osciliscope with Accessories works w/Phoenix Tools

Phoenix Scope allows technicians to quickly diagnose issues with automotive electronics and wiring. It captures circuit signals swiftly and displays signal waveforms at a slower speed for simultaneous observation and analysis. Furthermore, it can record tested signal waveforms and replay them for further observation and fault analysis.

Features

Work Exclusively with Phoenix Tools
23 Types of Automatic Measurements
High Memory Depth
Special Fast Storage Function
Convenient Cursor Operation
Soft Keyboard Input
Customizable and Loadable System Settings
Waveform Recording and Playback
Supports Mathematical Operations on Waveforms
Supports a Variety of Automotive Tests

Specifications

✔ Number of Channels: 4

✔ Bandwidth: 100MHz

✔ Rise Time: ≤3.5ns (typical)

✔ Protocol Decoding: CAN, LIN

✔ Trigger Type: Edge, Pulse Width

✔ Trigger Mode: Normal, Auto, Single Sequence

✔ Real-Time Sampling Rate (Max): 1Gsa/s(single channel); 500MS/s(dual channel); 250MS/s(four channels)

✔ Input Impedance: 1MΩ±1.5%

✔ Memory Depth: 50M (shared by 4 channels) Auto, 10K, 100K， 1M, 10M

✔ Sample Bit: 8

✔ Vertical Accuracy: ±3%

✔ Vertical Stall: 5mV~10V

✔ Vertical Offset: ± 2.5V (probe X1, ＜500mV/div) ±120V (probe X1, ≥500mV/div)

✔ Invert: Support

✔ Channel Coupling: DC, AC • Math: Dual Waveform/FFT

✔ Time Base Accuracy: 20ppm（typical value，ambient temperature +25℃）

✔ Power Supply: USB Port & DC Port

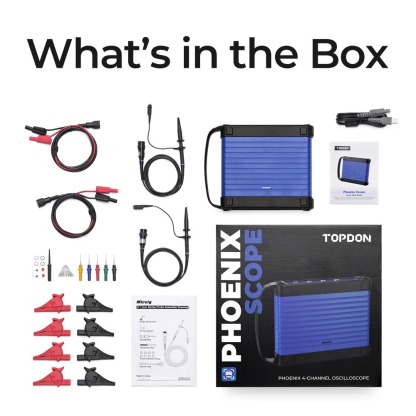

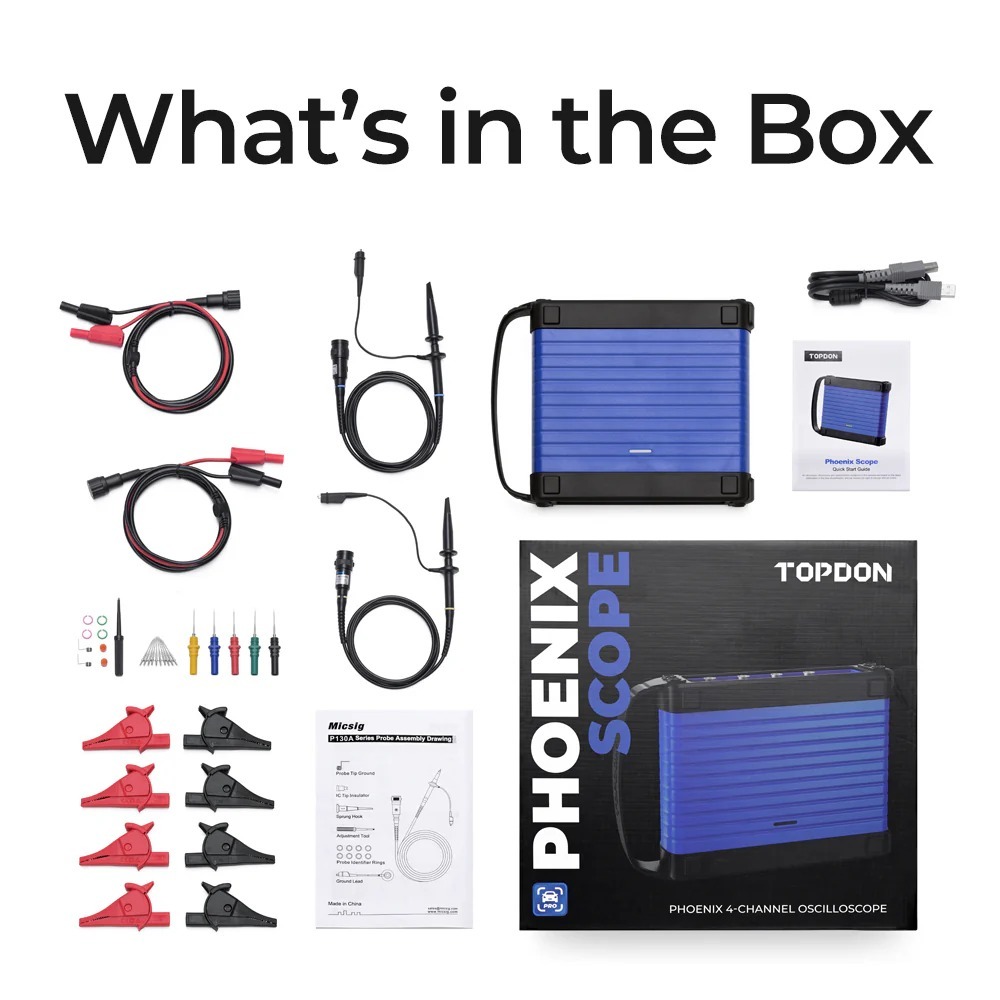

Packing

Phoenix Scope

Quick Start Guide

User Manual • BNC to 4mm Test Leads

Probe Assembly

Back Probe Pins Suite

USB Cable

Crocodile Clips

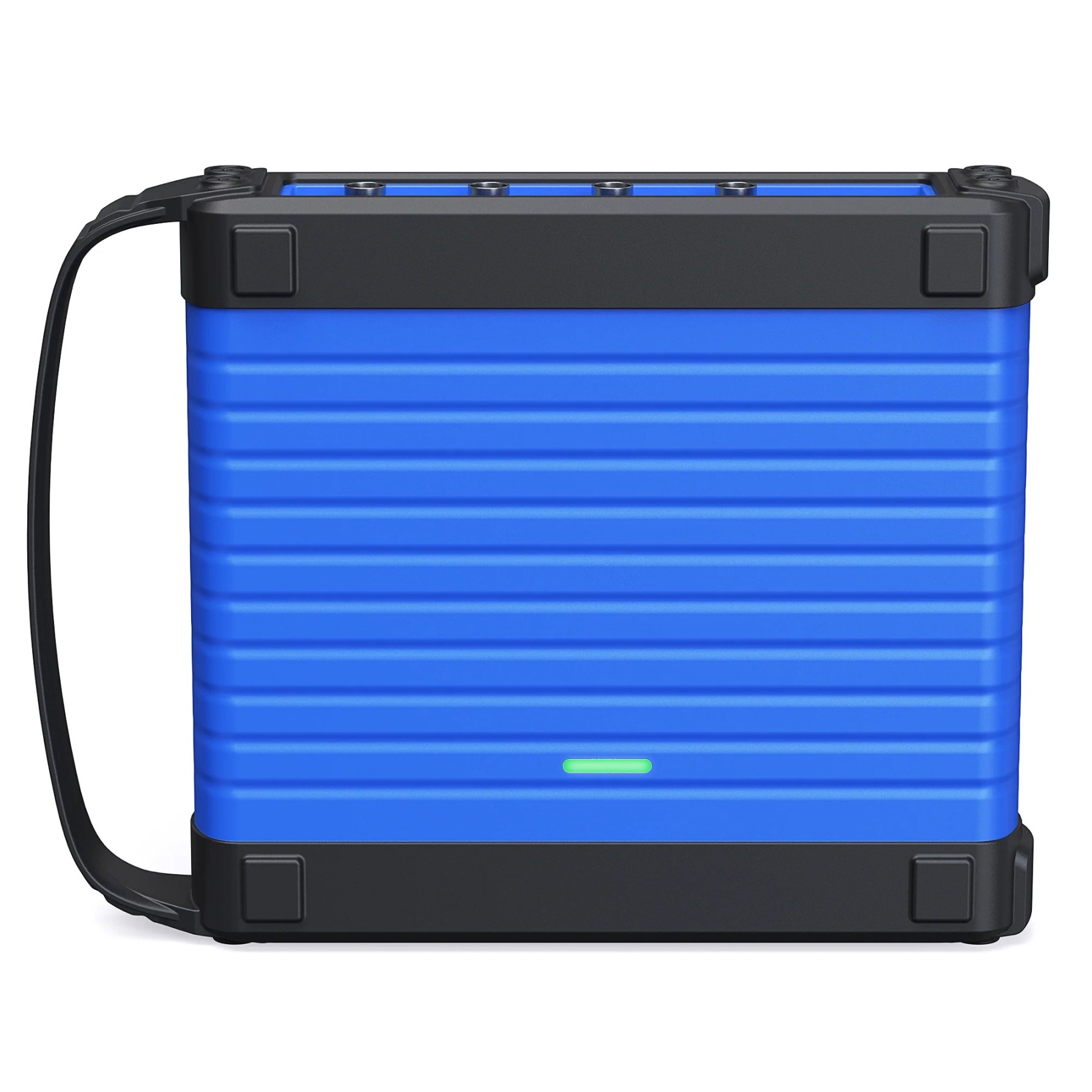

Topdon Phoenix Scope

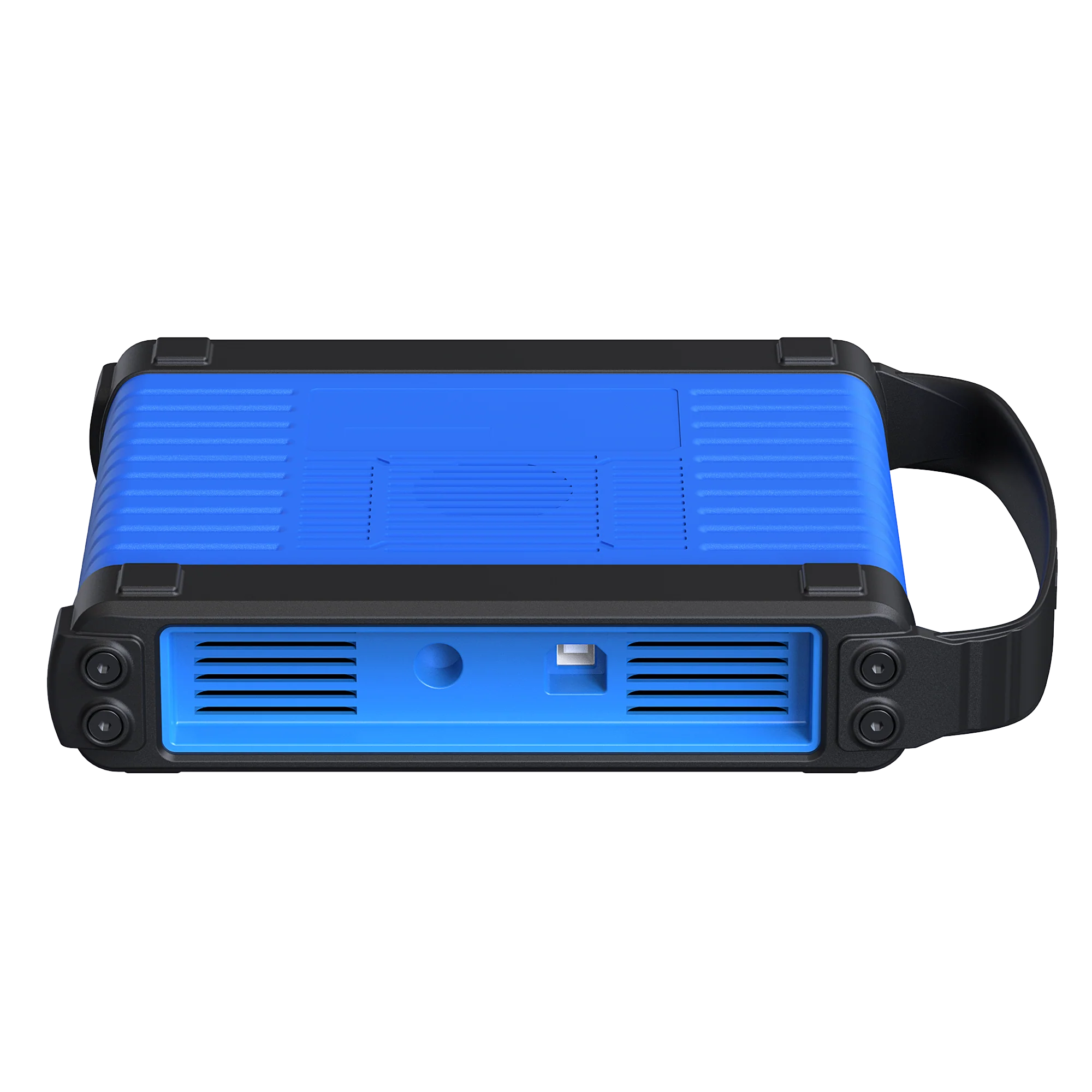

Topdon Phoenix Scope

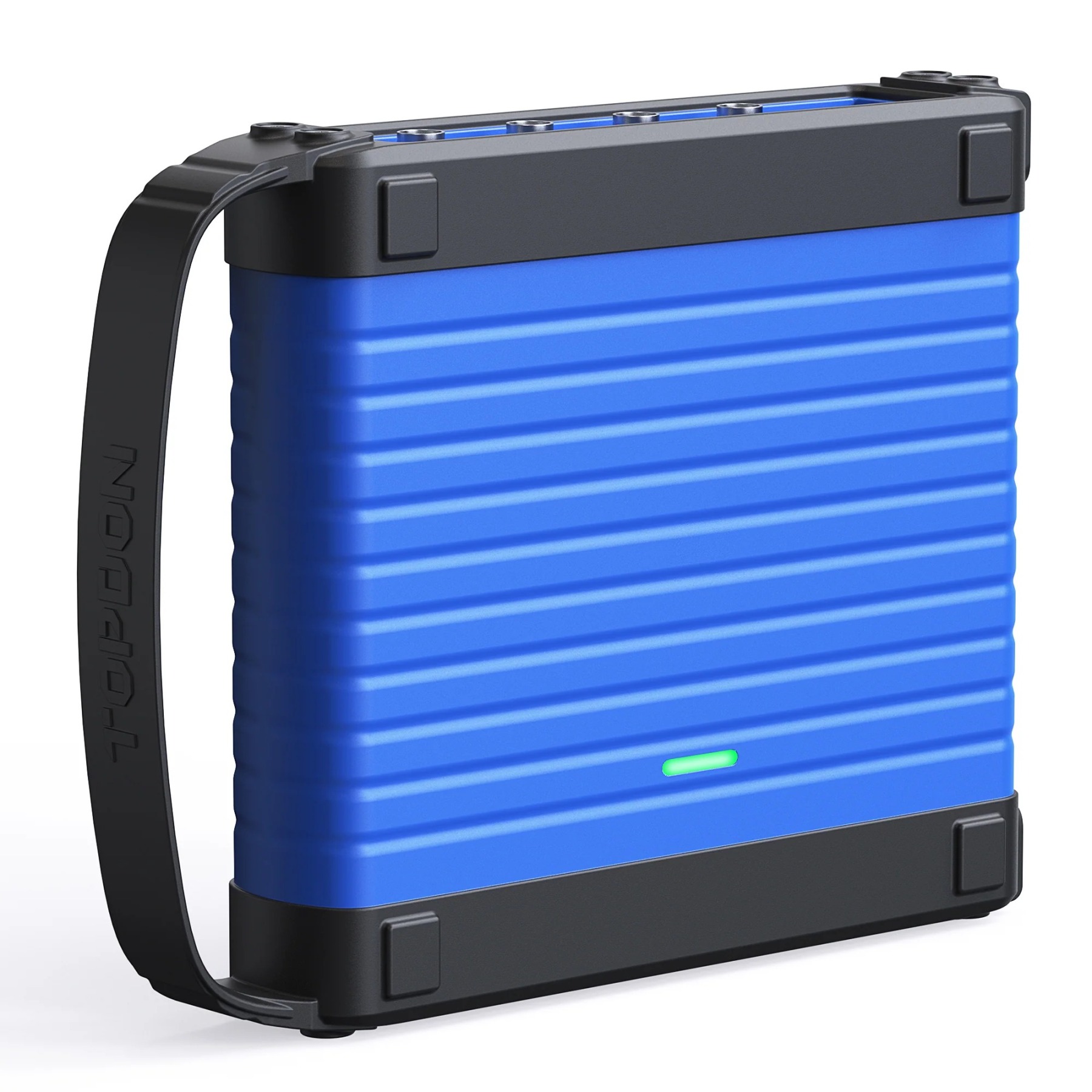

Topdon Phoenix Scope

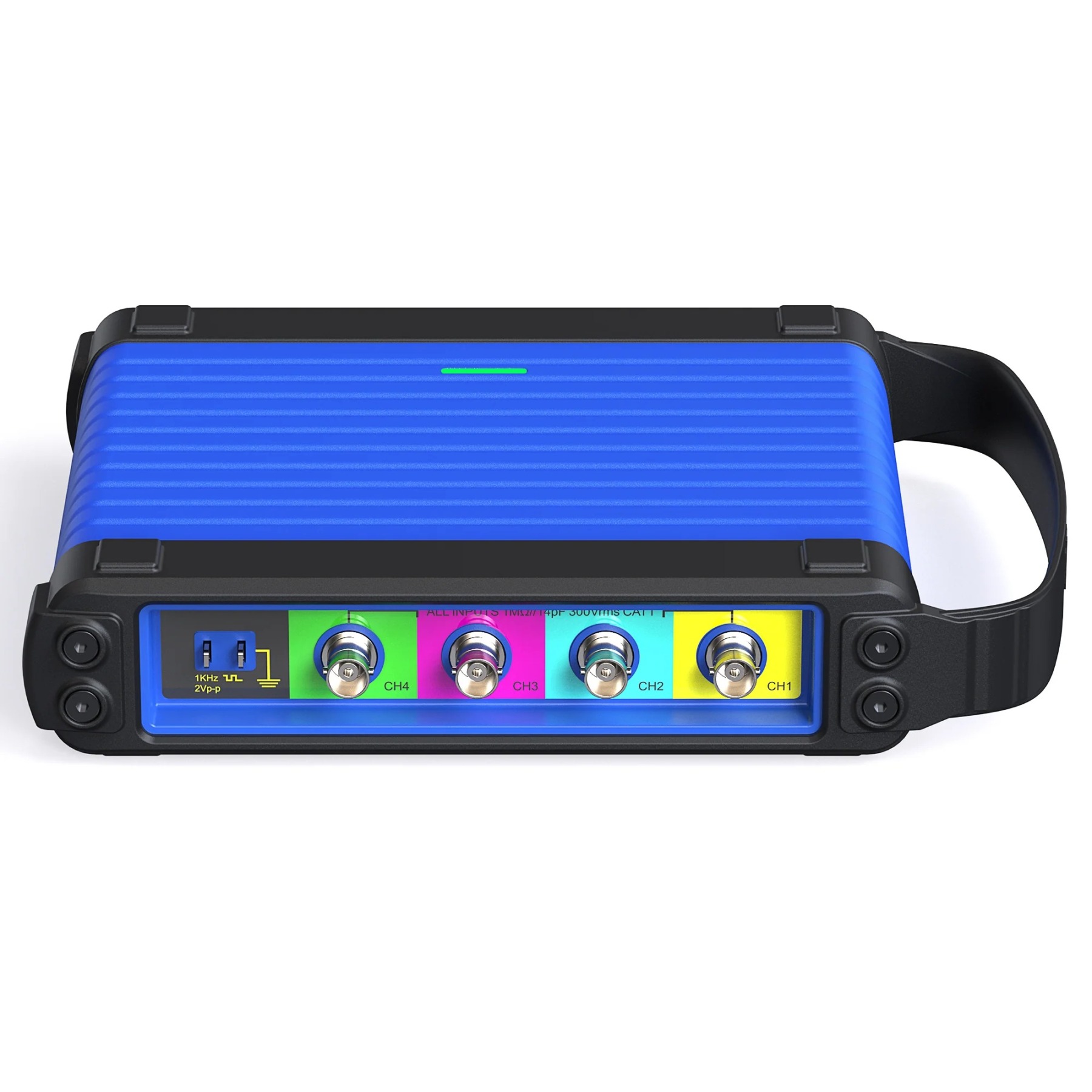

Topdon Phoenix Scope

Topdon Phoenix Scope
